Dhabyah Albalooshi

Evangelical Community Center by Ramses Wissa Wassef

hand-drawn

2023

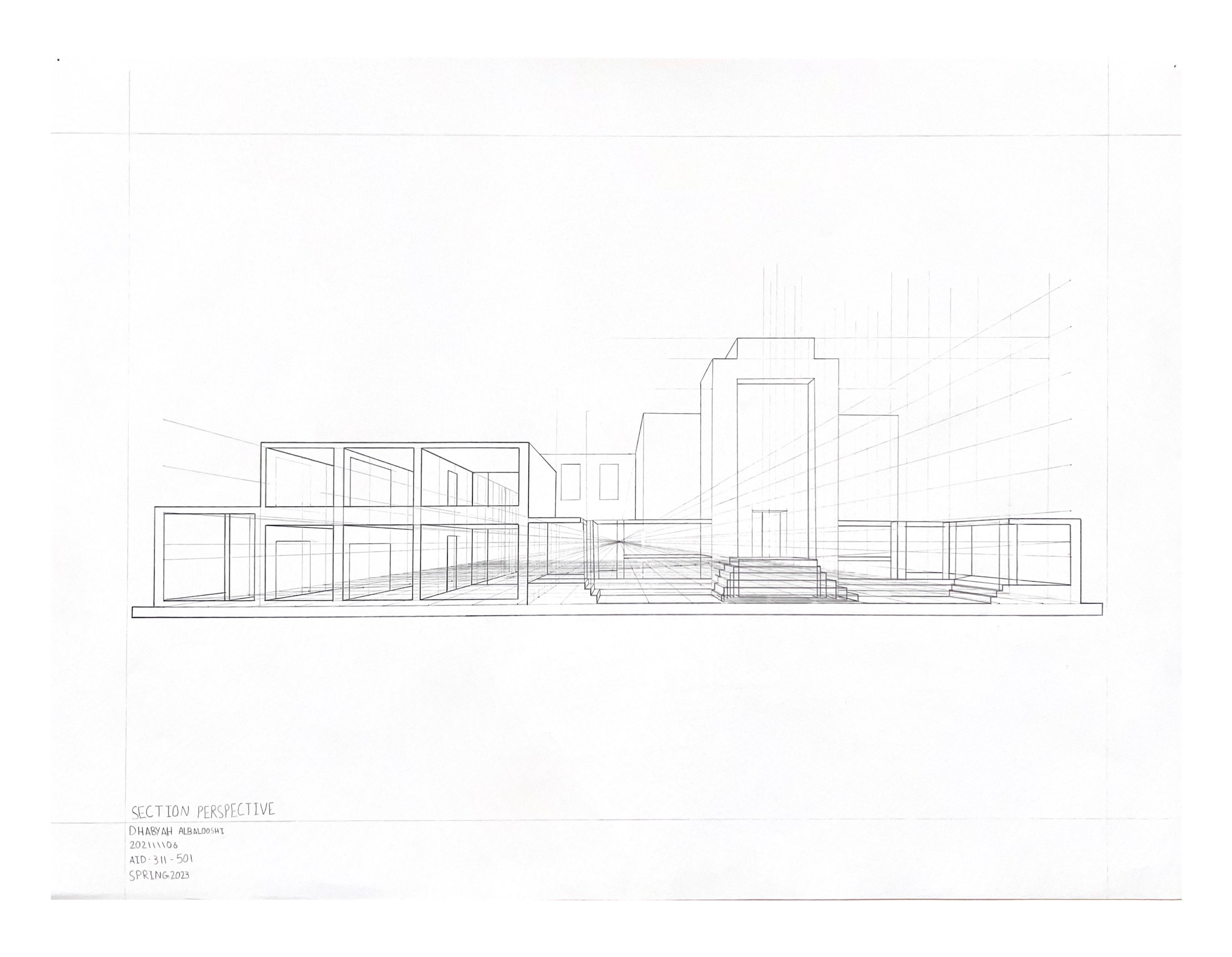

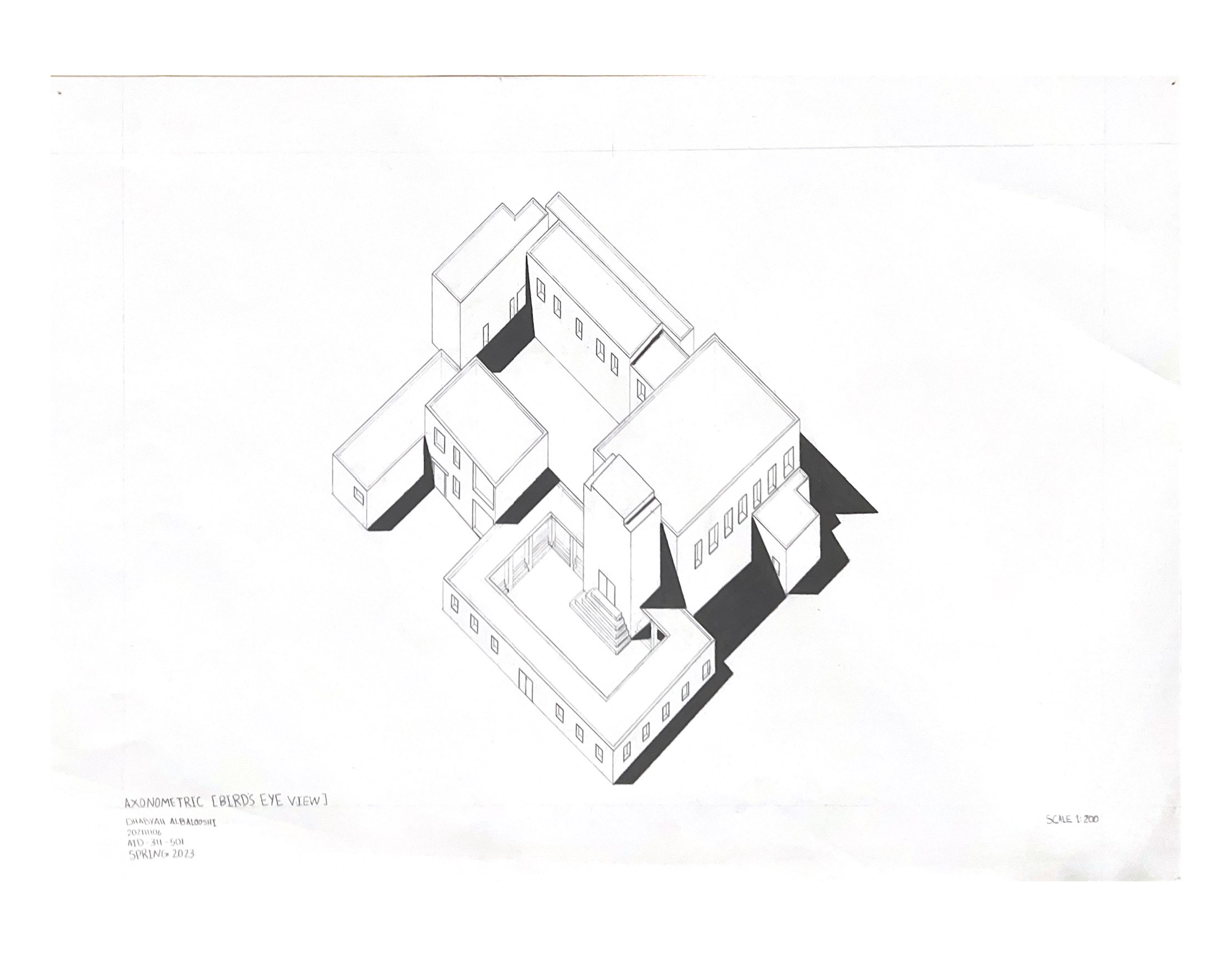

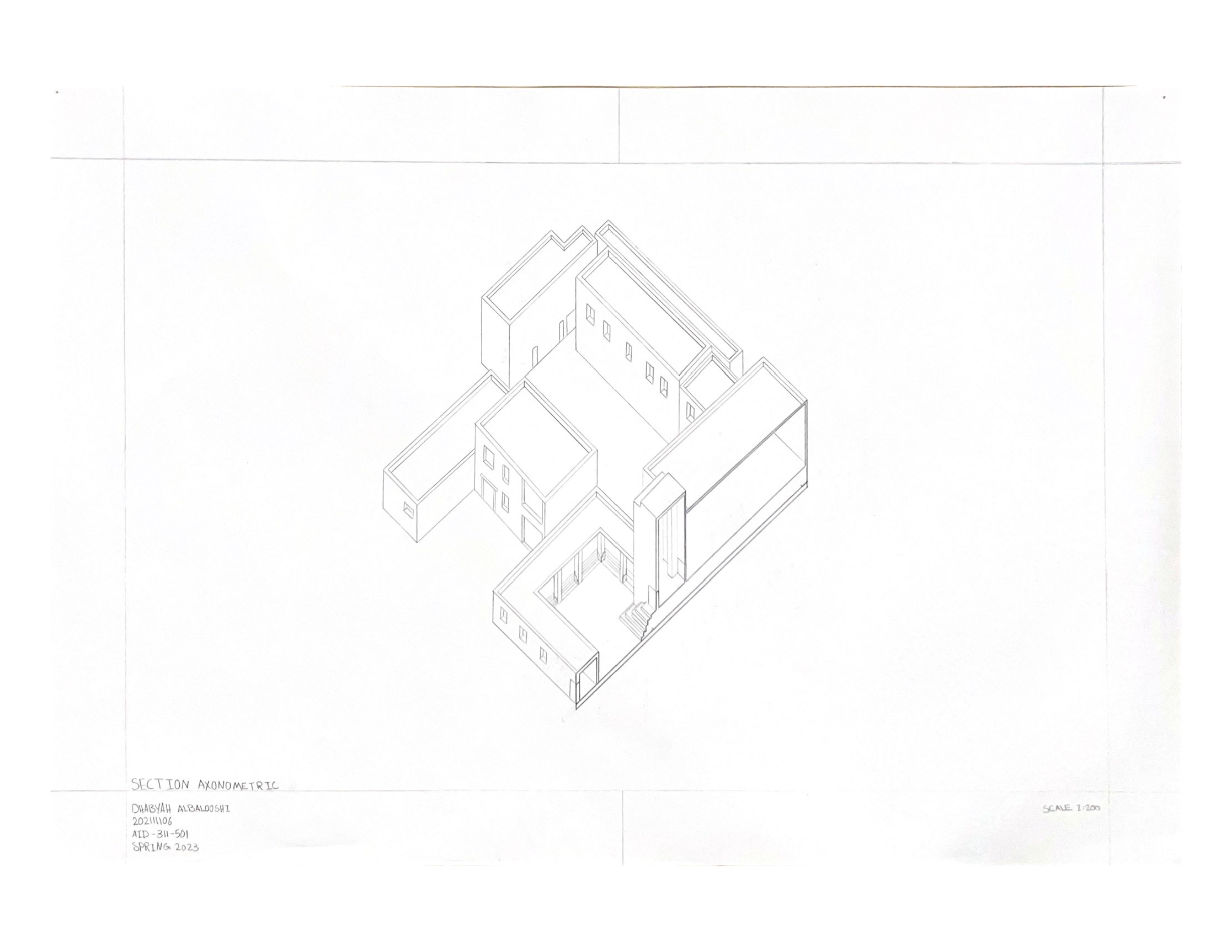

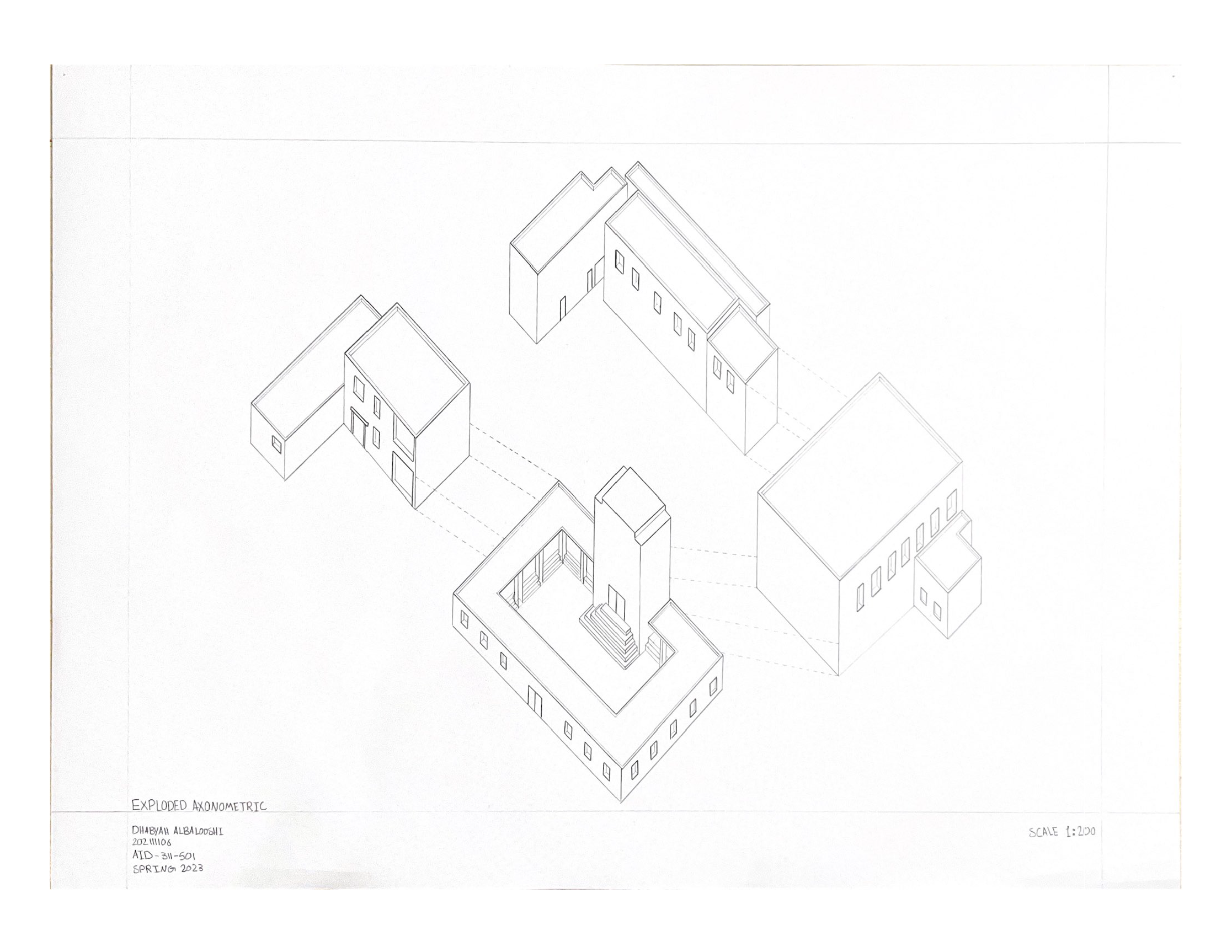

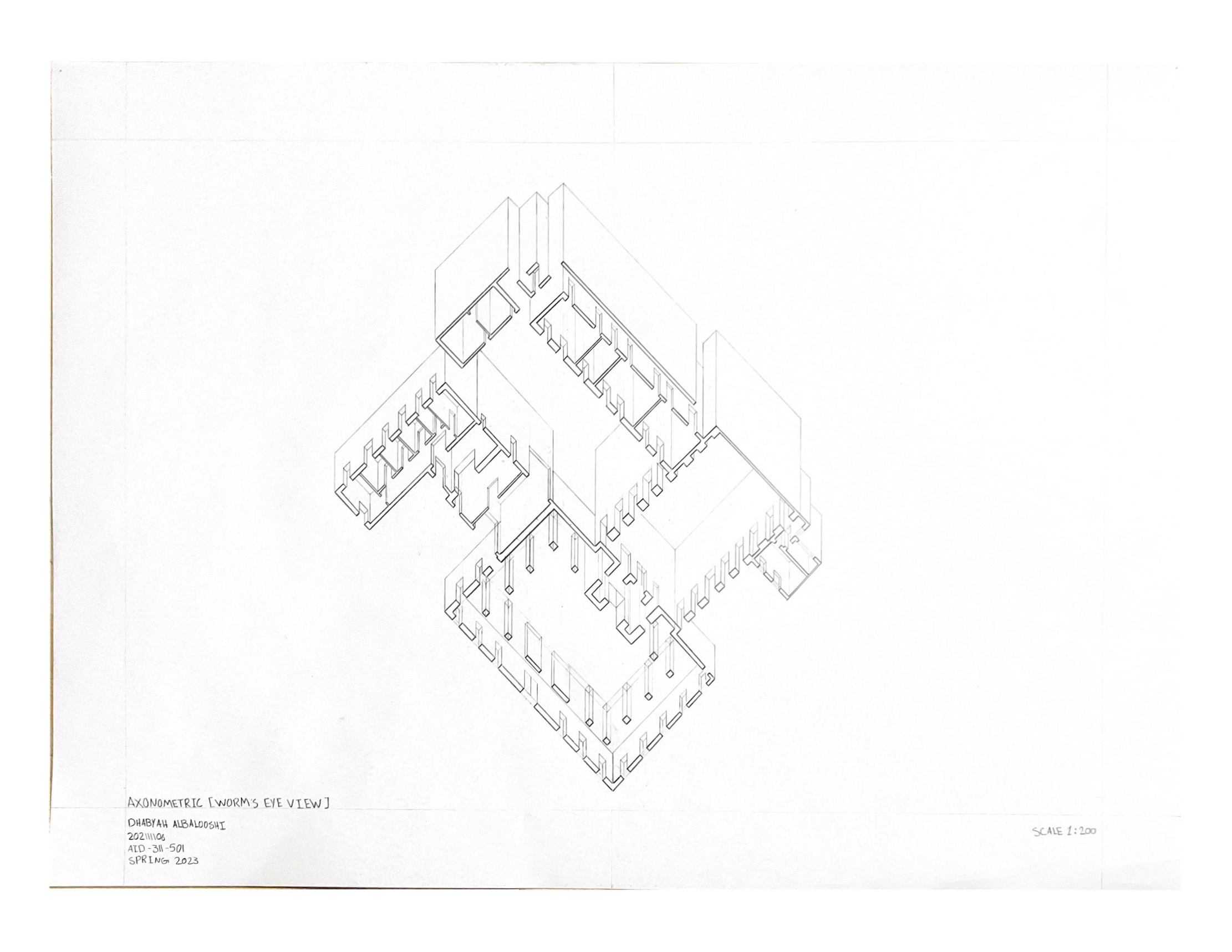

Axonometric bird’s eye view, Worm’s eye view, Exploded axonometric, Section axonometric, Section perspective

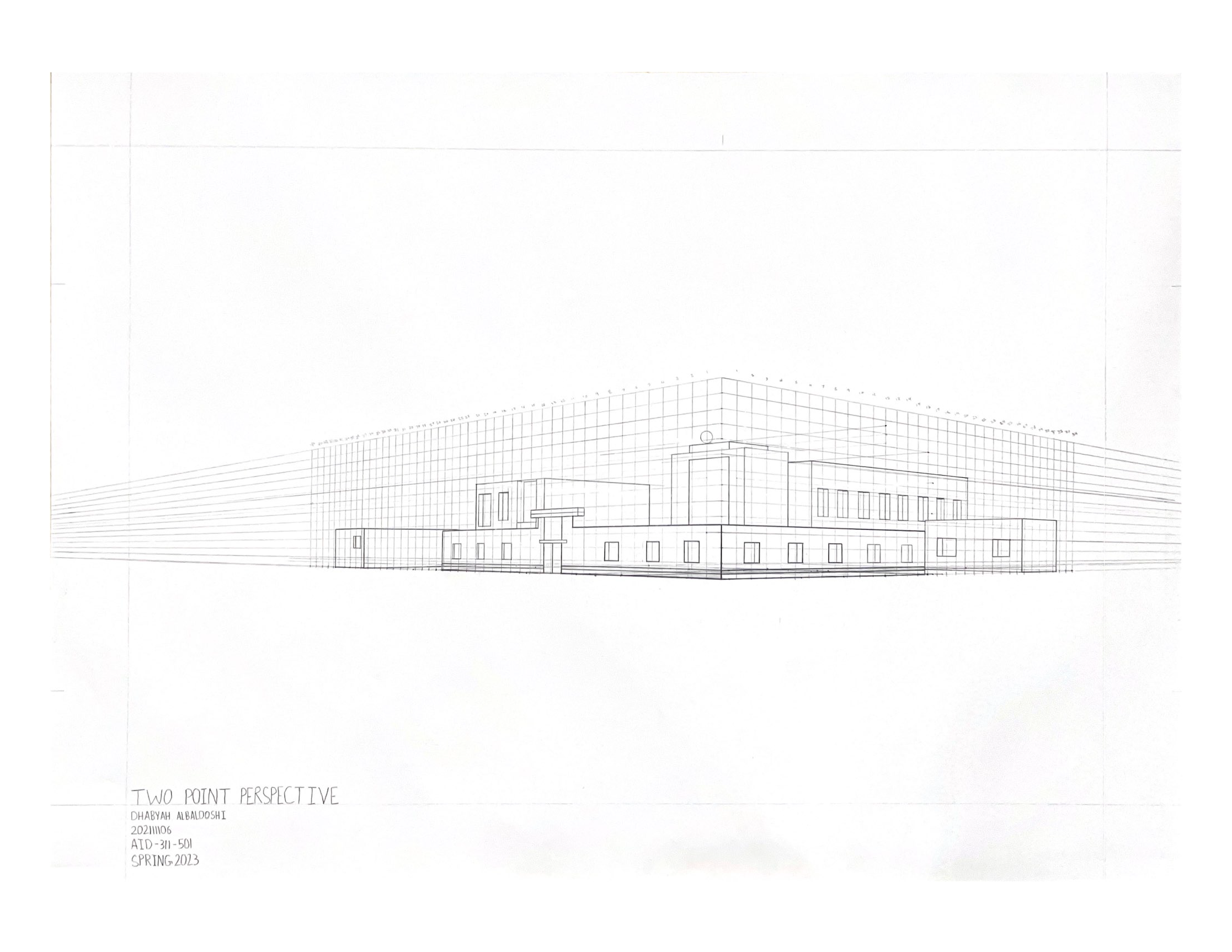

This project presents a comprehensive hand-drawn study of the Evangelical Community Center by Ramses Wissa Wassef. The collection includes axonometric bird’s eye and worm’s eye views, an exploded axonometric, a section axonometric, and a section perspective, carefully constructed to analyze spatial hierarchy and architectural composition. Due to the absence of dimensions in the reference plans, a grid system was applied to accurately estimate proportions and measurements. Through manual drafting, the project emphasizes precision, spatial understanding, and the relationship between solid and void, structure and enclosure, revealing the building’s volumetric and formal qualities.
